SKU: ELTE4424 12v Battery Harness 15a SAE Charge Level Monitor

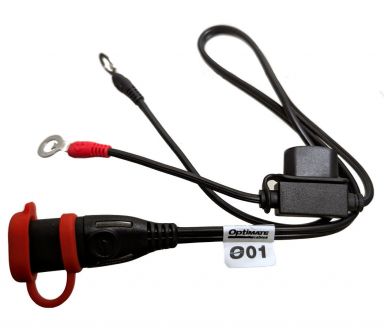

Tecmate - Optimate O-124 SAE Battery Harness with Battery Status

# O-124

Compatible with Battery Tender, Yuasa and most chargers using a standard SAE connector.

Monitor the charge of your stored 12 V motorsport lead acid battery or check if the vehicle charging system is working correctly.

• 2 automatic modes - battery state of charge monitor (single LED flashing) and charging system test (arrow mode)
• 4 LEDs cover the voltage range ‘full to empty’ voltage range of all 12 V batteries, including higher voltage AGM for power sport (4th vv LED = 12.7 V)
• Battery charge level : LED matching charge level blinks every 5 seconds (long term draw less than 0.2mA)
• Vehicle Charge system : LED arrow mode activates when charge voltage reaches minimum 13.5V (v green LED) or ideal range of 14V+ (vv green LED)
• High quality battery monitor, designed by TecMate

Length: 20 inch - 50cm
Wire: 16awg
Fuse Inline: 15 amp
Rated: 15amp
Ring Terminals: 8mm & 6mm
